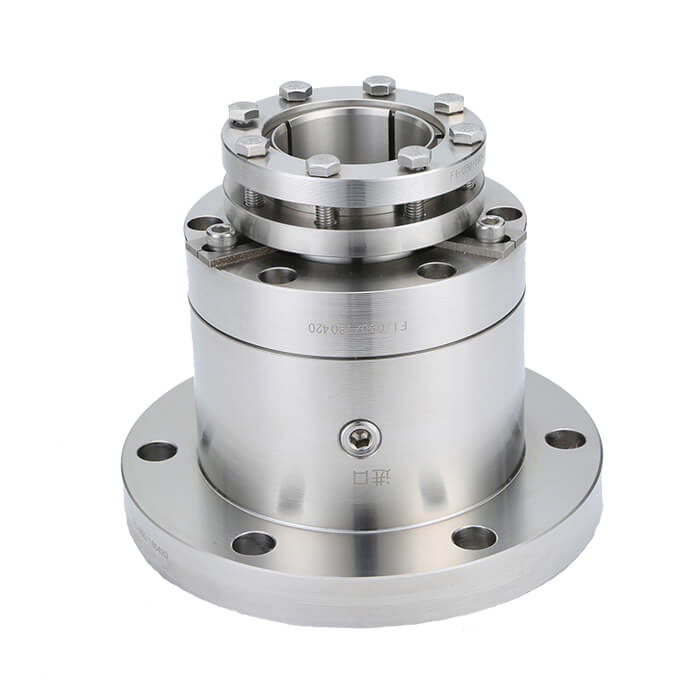

Agitator Seal
Application :
Mainly used in top driven vertical type agitation equipment, which does not have strict requirements for leakproofness.
Operation Parameters :
- Pressure: - 0.1 ~ 0.6 MPa (when the pressure is bigger than 0.6 MPa, the pressure balancing device is needed and its connection size can be customized)
- Temperature: - 20 ~ 150 ºC (cooling tank is required if the temperature is higher than 150 ºC and the installation height should be 100 mm higher than normal)
- Linear Speed: 2 m/s or less (2001) OR 3 m/s or less (2002, 2003, 2004 and 2005)
Material :
- Rotary Ring : SiC/Carbon
- Stationary Ring : TC/SiC
- Elastomers : NBR/Viton/EPDM/PTFE/FFKM
- Springs : SS304/SS316/HC-276
- Metal Parts : SS304/SS316/SS316L
Mediums :
water, oil, week acid. week alkali, and other normal mediums (2001 and 2002) OR flammable, explosive and poisonous gas (2004 and 2005).
